From project requirements to production

Custom Extrusion & Capabilities

Custom aluminum profiles, from drawing review and tooling to extrusion, surface finishing and secondary fabrication. Our Foshan factory operates seven extrusion lines and two powder-coating lines, supported by specialist partners for selected processes.
Discuss your project

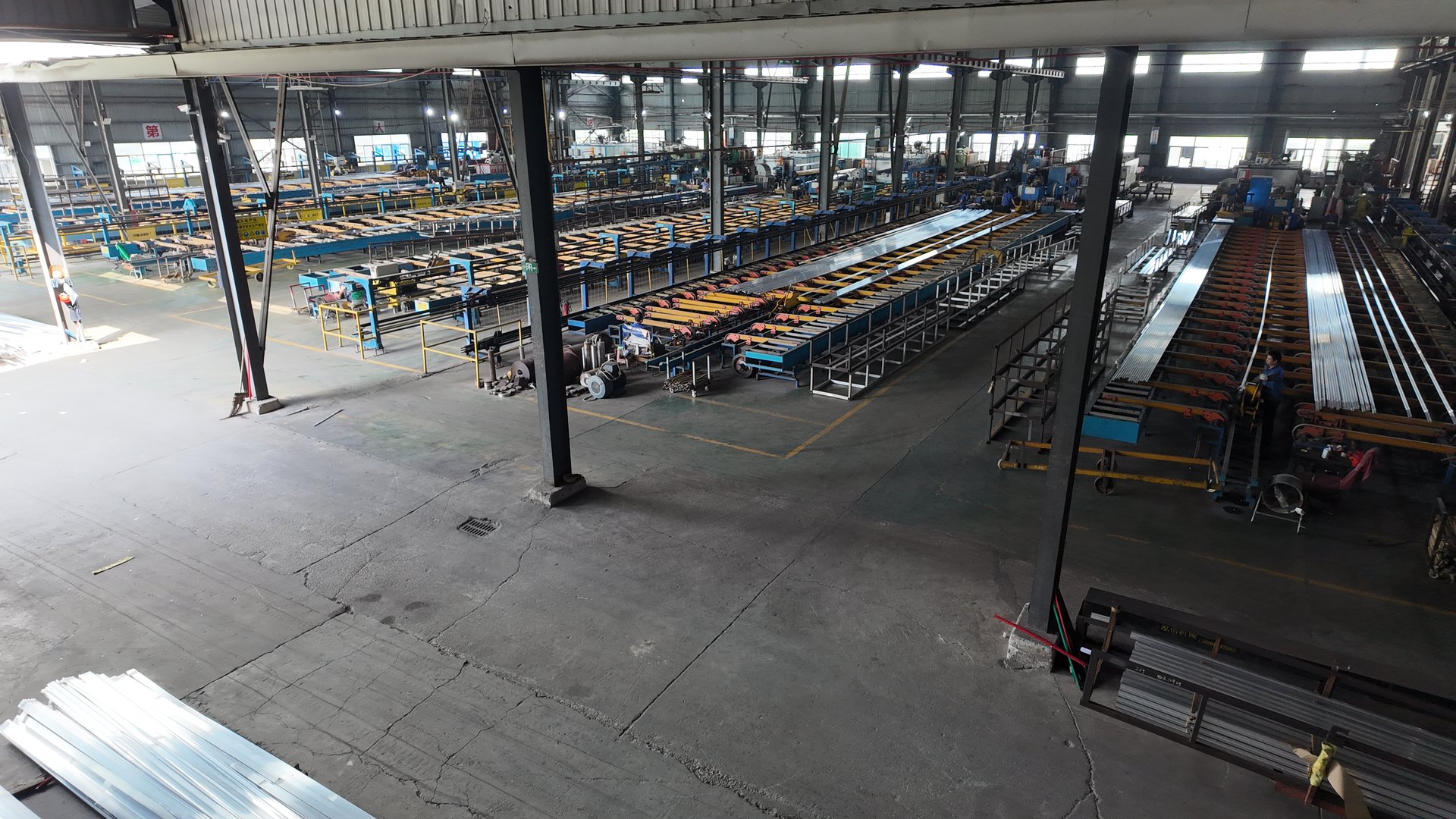

Wide view of Guantian's aluminum profile production hall
01 / Process & scope

Manufacturing at a glance.

01 / Process overview

Custom Extrusion

Develop your profile from a CAD drawing, 3D model or physical sample, with an engineering review before quotation.
We confirm the cross-section, alloy, finish and quantity, then assess the minimum order weight for each profile and color.
Explore custom extrusion
02 / Process overview

Die Development

Select an existing die or develop custom tooling through specialist die makers and in-house extrusion trials.
Each tooling project follows written drawing approval, agreed die fees and sample acceptance requirements.
Explore die development
03 / Process overview

Aluminum Extrusion

Seven extrusion lines with presses rated from 800 to 1,500 metric tons support architectural and industrial profile production.
6063 and 6061 are available, with 6005 and 6082 reviewed for each project. Profile geometry and temper determine the production limits.
Explore aluminum extrusion
04 / Process overview

Surface Finishing

In-house powder coating and wood-grain transfer, plus anodizing and electrophoretic coating through specialist partners.
The finish, color, film thickness and visible surfaces are agreed and documented, with a retained master sample as the reference.
Explore surface finishing
05 / Process overview

Secondary Fabrication

Cut-to-length sawing and standard punching in-house, with drilling, tapping, CNC machining and other operations coordinated through specialist partners.
We supply full lengths, cut profiles or finished parts, with machining tolerances confirmed against the approved drawing.
Explore secondary fabrication
06 / Process overview

Quality Control

Incoming material inspection, signed first-piece approval, in-process inspections and final inspection before shipment.
Batch records link inspection results to production records and billet heat numbers. Reports are available with the shipment.
Explore quality control
02 / Technical specifications

Key production specifications.

Alloys & tempers
6063: T5 / T6. 6061: T4 / T5 / T6. 6005 and 6082: T5 / T6, subject to alloy-specific order minimums and engineering review.
Profile dimensions & tolerances
Typical wall thickness: 0.8–15.0 mm. Standard delivery length: 3,000–6,000 mm. Cross-section dimensions, thin walls and extended lengths are assessed together.
Surface finishing
Powder coating and wood-grain transfer: up to 6,500 mm. Anodizing and electrophoretic coating through specialist partners: up to 6,000 mm. Section geometry and fixturing are also reviewed.
Secondary fabrication
Cut lengths: 20–6,000 mm, with a typical cutting tolerance of ±0.5 mm. Hole and CNC tolerances depend on the operation and approved drawing.
Inspection & records
Inspection covers dimensions, wall thickness, hardness, film thickness, color and appearance, with first-piece approval and in-process checks every 1–2 hours.
03 / How we work

From your brief to delivery.

  1. 01

    Share drawings
    or requirements

  2. 02

    Technical
    review

  3. 03

    Quotation &
    die confirmation

  4. 04

    Sample
    approval

  5. 05

    Batch
    production

  6. 06

    Inspection &
    delivery

What to share with us

Send your drawing or sample, application, alloy and temper, finish, cut length and estimated quantity. Mark critical dimensions, mating features and any special inspection requirements.
Prepare your inquiry

What we confirm together

Before production, we agree on the drawing revision, production limits, minimum order weight, die charges, sample approval, schedule, inspection criteria and packaging.
04 / On the factory floor

Inside our production and inspection areas.

Explore the factory
Operators handling aluminum profiles on the production line

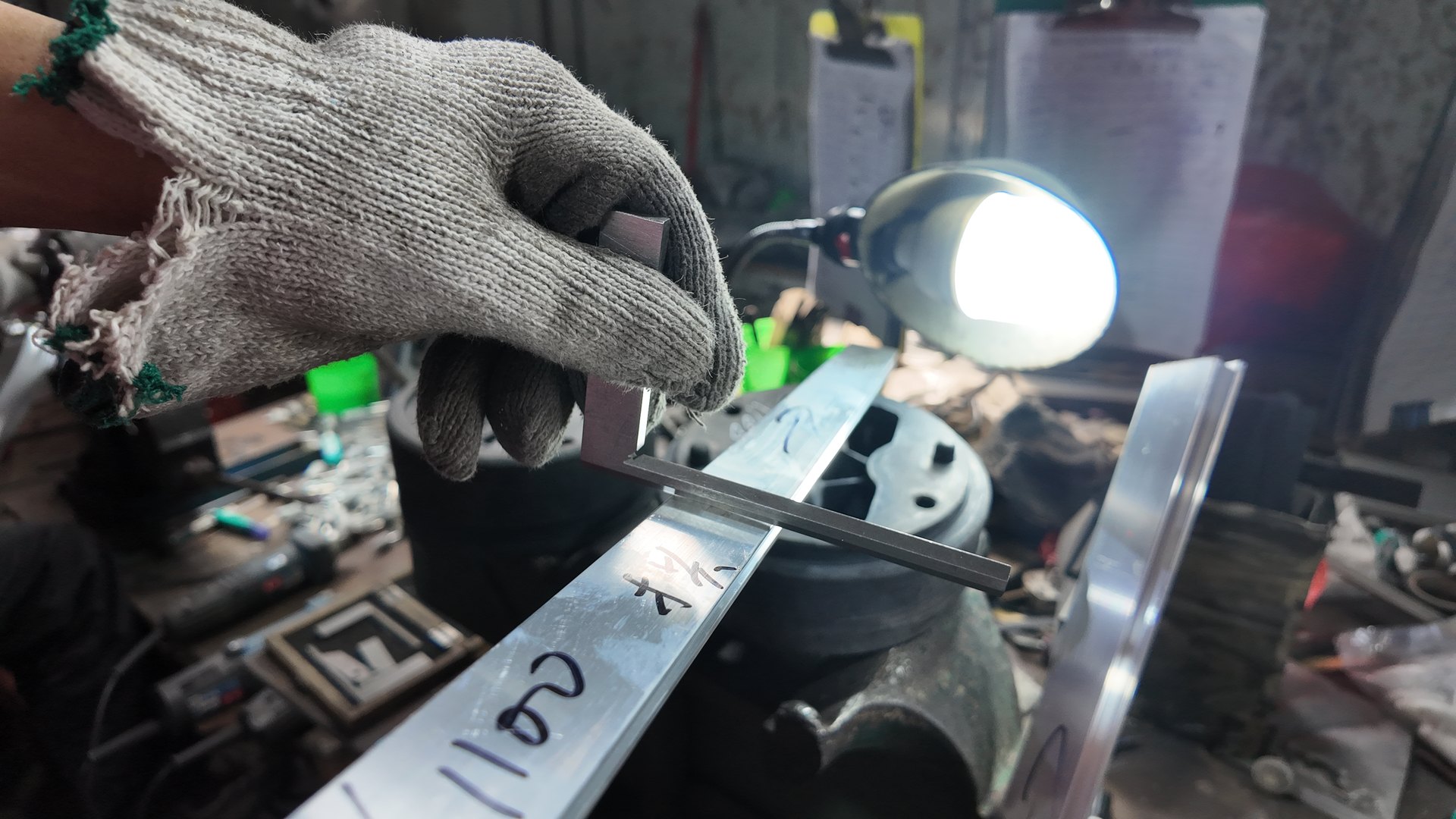

Manual checking of an aluminum profile at the workbench
Portrait to add 3:4
Technical director — portrait

Real portrait · 3:4 vertical
Simple background, consistent lighting.

team-technical-portrait
Technical coordination

A technical contact for your project.

Full name To addAdd the person’s preferred public name in English.
Official title To addAdd the actual English job title. Confirm the wording with this person.
Responsibilities To addDescribe actual responsibilities for drawing review, manufacturability, tooling and sample approval. Use 1–2 concise sentences; include only verified experience.
